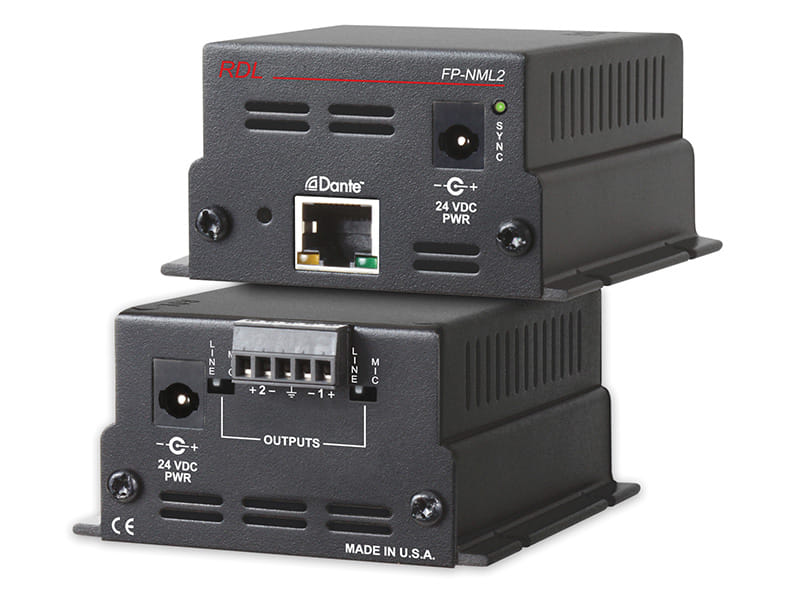

Сетевой интерфейс: Вход — 1-Dante (RJ45), 2 выхода — симпетричные аудиосигнал линейного или микрофонного уровня на винтовых разъёмах. Питание 24В
| Network Connector: | RJ45 with Link and Speed indicators |
| Digital Audio Ethernet Protocol: | Dante |
| Transmission Rate: | 100 Mbps |
| Sample Rates Supported: | 44.1 kHz, 48 kHz (default) |
| Bit Depth Supported: | 24 bits |
| Audio Operating Levels: | -18 dBFS = +4 dBu |
| Outputs (2): | Balanced, detachable terminal block |
| Output Level: | +4 dBu (nominal) |
| Output Impedance: | 150 Ω balanced; 75 Ω unbalanced |
| Frequency Response: | 20 Hz to 20 kHz (± 0.5 dB) |
| THD+N: | < 0.1% |
| Noise below +4 dBu: | < -80 dB (output active); < -95 dB (outputs muted) |
| Crosstalk: | < 90 dB (1 kHz); < 80 dB (20 Hz to 20 kHz) |
| Headroom above +4 dBu: | > 18 dB |
| Indicators (3): | Ethernet Link and Speed, SYNC |
| Power Connections (2): | Power Jack; 24 Vdc Pass-Through |
| Ambient Operating Environment: | 0° C to 40° C |
| Power Requirement: | 24 Vdc @ 100 mA, or PoE (FP-NML2P) |
| PoE (FP-NML2P): | Class 0, IEEE 802.3af |
| Dimensions: | 4.85" (12.3 cm) W; 1.75" (4.45 cm) H; 3.25" (8.26 cm) D |
