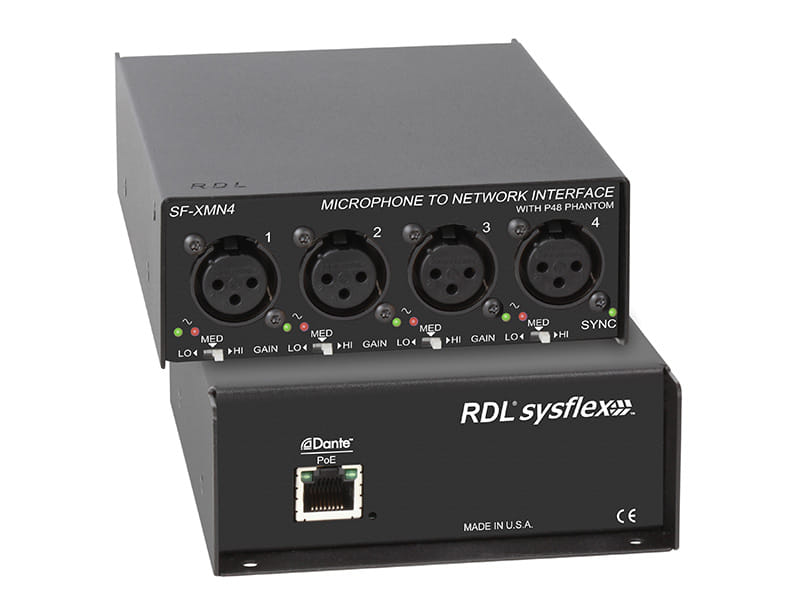

Сетевой интерфейс для передачи 4 малошумящих микрофонных входов (XLR) с независимой регулировкой чувствительности и фантомным питанием (48В) в сетевые каналы Dante (RJ45). Индикация состояния. Питание PoE. Форм-фактор — SysFlex™
| Network Connector: | RJ45 with Link and Speed indicators |
| Digital Audio Ethernet Protocol: | Dante |
| Transmission Rate: | 100 Mbps |
| Sample Rates Supported: | 44.1 kHz, 48 kHz (default), 88.2 kHz, 96 kHz |
| Bit Depth Supported: | 24 bits |
| Audio Operating Level: | -20 dBFS = +4 dBu |
| Reference Level: | 0 dBFS = +24 dBu |
| Inputs (4): | XLR (female) |
| Gain: | Mic: 40 dB (LO), 48 dB (MED), 62 dB (HI); front-panel selectable |
| Input Level (for +4 dBu/-20 dBFS): | Mic: -36 dBu (LO), -44 dBu (MED), -58 dBu (HI) |
| Input Level (maximum): | Mic: -16 dBu (LO), -24 dBu (MED), -38 dBu (HI) |
| Input Impedance: | > 2.5 kΩ |
| Phantom Power: | P48, 48 Vdc |
| Standard for Phantom: | IEC 61938: 2013 |
| Frequency Response: | 20 Hz to 20 kHz (± 0.5 dB) |
| Equivalent Input Noise: | -130 dBu (62 dB gain); -132 dBu A-Weighted |
| Noise below -20 dBFS (20 to 20 kHz): | Mic: < -72 dB (LO), < -72 dB (MED), < -68 dB (HI) |
| THD+N: | < 0.1% (20 Hz to 20 kHz, +4 dBu/-20 dBFS); 0.015% at 1 kHz (typ) |
| CMRR: | > 65 dB (50 Hz to 120 Hz) |
| Crosstalk: | Below Noise Floor (20 Hz to 20 kHz at operating level, any input to any input, max. mic gain) |
| Indicators (11): | Ethernet Link and Speed (2, rear panel); Sync (front panel); dual-LED VU meter (8 LED, front panel) |
| Ambient Operating Environment: | 0° C to 50° C |
| Power Requirement: | PoE Class 0, IEEE 802.3af |
| Specification Conditions: | Gain/Level: ± 1 dB; Source termination: 150 Ω; A to D values measured in digital domain |
| Dimensions: | 4.23" (10.74 cm) W; 1.68" (4.27 cm) H; 5.77" (14.66 cm) D |
